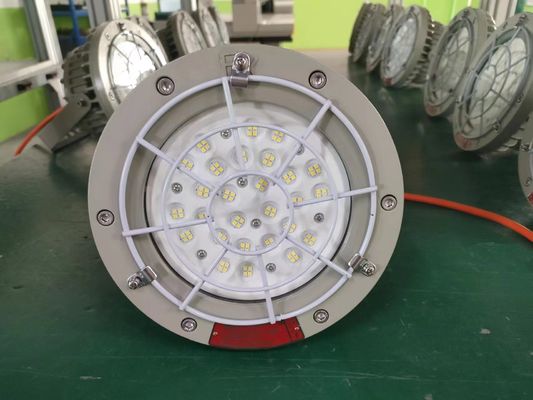

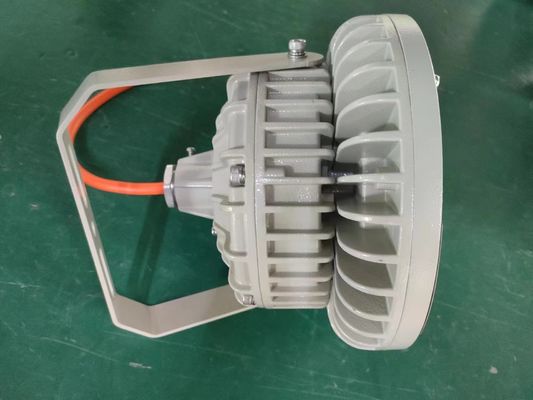

SMC Mold Pressure Shell Explosion Proof Led High Bay Lights 75w
Features:
Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.
Lamp housing is made of high borosilicate toughened glass with transmittance.It's the antiglare design.
With grids to adjust lighting effect and reduce the glare.
Environmental-friendly and energy saving, simple shape, easy installation
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.
Steel conduit or cable wirings.
Application:
| Suitable for explosive gas environment Zone1, Zone2. |
| Suitable for Hazarous dust area: Zone21, Zone22. |
| Can be used in the environment of temperature group for T1~T6. |
| Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere. |
| Verious types terminals for options. |
Specification:
| Electrical data |
|
|
|
|
|
|
|
| Rated voltage |
100-240VAC, 50-60Hz |
| Power factor |
>0.95 |
| THD |
<20% |
| Luminous characteristics |
|
|
|
|
|
|
|
| Power consumption [W] |
20～70 |
80-100 |
100-150 |
|
| Colour rendering [CRI] |
70 (±2) |
| Colour temperature [K] |
5700-6500 |
| Luminaire efficiency [Lm/W] |
115-135 |
| Beam angle |
120° (60°, 90° is optional) |
| Mechanical data |
|
|
|
|
|
|
|
| Degree of protection |
IP66 |
| Cable entry |
G 3/4” |
| Weight [kg] |
4.8 |
6.4 |
8.8 |
/ |
| Terminal |
≤2.5 mm² |
| Mounting Styles |
Ceiling; Wall Bracket; Pendant: Flange; Flat |
Applications:
1. Petroleum and Chemical Industry
Locations: Refineries, chemical plants, drilling platforms, gas stations, and oil depots.
Hazardous Materials: Flammable and explosive gases and vapors such as crude oil, natural gas, gasoline, benzene, and alcohols.
2. Coal Mining Industry
Locations: Underground tunnels, mining faces, and transfer stations.
Hazardous Materials: Gas (primarily methane) and coal dust.
3. Dust Explosion Environments
Locations: Flour mills, sugar refineries, feed processing plants, metal processing plants (aluminum and magnesium powders), wood processing plants, and plastics plants.
Hazardous Materials: Combustible dust suspended in the air.
4. Pharmaceutical and Food Industry
Locations: Some raw material workshops, ethanol extraction plants, and starch or sugar powder processing areas.
Hazardous Materials: Alcohol vapors and combustible dust.
5. Other Industrial Sites
Sites: Paint spraying workshops (solvent vapors), solvent warehouses, gas boiler rooms, and sewage treatment plants (may generate methane).
Hazardous Materials: Various flammable and explosive chemicals.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1-5 years warranty to our products.
