Good quality 220V 300mm 400mm 500mm 600mm explosion proof air flow panel axial exhaust fan
Specification
1. 10years factory history
2. Guaranteed quality with CE
3. Fine performance
4. Larger wind output
5. Low power & low price
6. 10 years housing lifetime
| Type |
BAF Type |
BAF Type |
BTS Type |
| Ex rate |
Ex d IIB T4 Gb |
| Degree of protection |
IP54 |
| Rate voltage |
220V/380V AC |
| Size of blade(mm) |
300,400,500,600 |
315,400,500,600 |
500,600,750 |
| Power consumption(W) |
120,180,250,370 |
180,250,550,750,1500 |
370,550,750 |
| Air volume(m³/min) |
2200,2400,4900,9500 |
2273,4687,9133,18250 |
6000,9600,18000 |

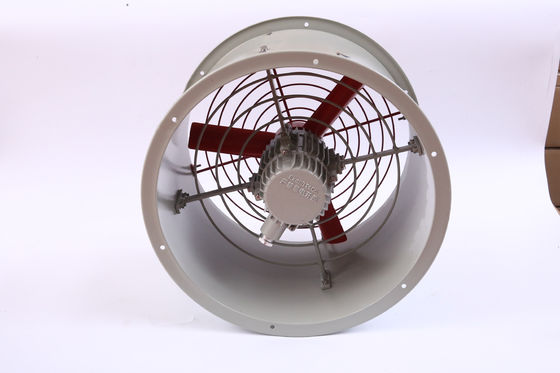

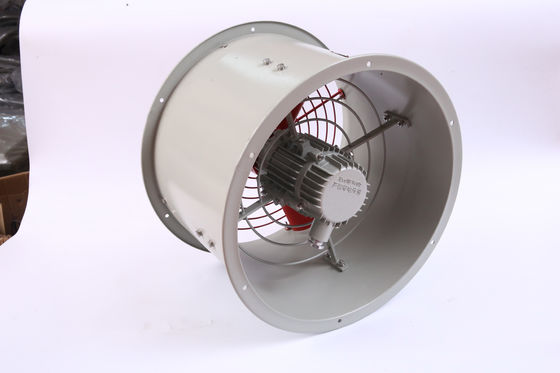

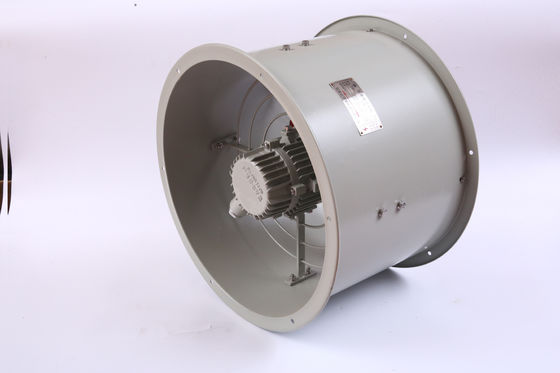

Portable explosion proof axial flow exhaust ventilator blower fan
The post axial flow fan is placed directly on the indoor or ourdoor side and it can move everywhere..
It is suitable for such places as factories, workshops, warehouses and other similar places for air cooler.
Axial flow fan is currently the ideal choice for new applications such as chemical and light industry civil building senior hotels.
Installation for Axial Flow Fan and Blower:
-Wall Mount
-Pipe Type
-Position Type
-Fixed Type
FAQ:
1 .Q1: May I get free sample?
A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer place bulk orders for that item.
Q2: Can you supply OEM or ODM service?
A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!
Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q4:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products. Q6: What's the MOQ? A:MOQ is 1 set.
Applications:
1. Aerospace and Transportation
Locations:
Aircraft hangars: Aircraft maintenance may result in fuel vapor leaks (jet fuel) or the presence of flammable cleaning agents.
Ship compartments (cargo holds, engine rooms): Ships, especially those transporting chemicals or fuel, may experience the accumulation of flammable vapors.
Automobile paint booths: Flammable paints and thinners are used, and their vapors are explosive when mixed with air.
Highway tunnels: Tunnels can become hazardous areas if a vehicle transporting hazardous chemicals leaks, so explosion-proof lighting is a safety standard.
2. Military and Fireworks Industry
Locations: Gunpowder, explosives, and detonator production and storage workshops; fireworks manufacturing plants.
Risks: These locations are inherently filled with flammable and explosive materials, and any electrical spark could potentially cause a disaster. Therefore, the explosion-proof requirements for electrical equipment are extremely high.
3. Laboratories and Research Institutions
Locations: Chemical and biological laboratories (which may use flammable solvents such as hydrogen).
Risks: During experiments, flammable gases, vapors, or dusts may be used or generated, necessitating the use of explosion-proof lighting and electrical appliances, either in small areas or throughout the entire laboratory.
4. Special Commercial Locations
Locations: Printing plants and dry cleaners (which utilize traditional flammable solvents such as tetrachloroethylene) that use large quantities of alcohol-based disinfectants or solvents.
Risks: While not directly industrial environments, the concentrations of flammable vapors generated during work may reach dangerous levels.
