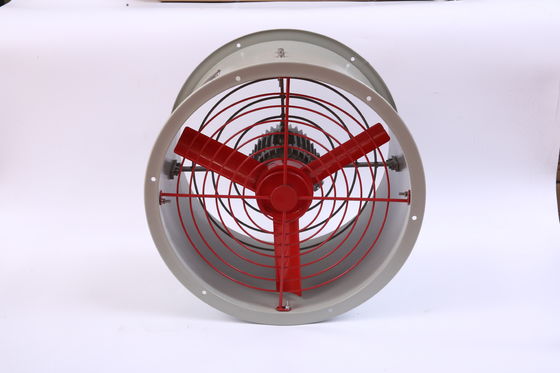

Good quality 220V 300mm 400mm 500mm 600mm explosion proof air flow panel axial exhaust fan
Specification
1. 10years factory history
2. Guaranteed quality with CE
3. Fine performance
4. Larger wind output
5. Low power & low price
6. 10 years housing lifetime
| Type |
BAF Type |
BAF Type |
BTS Type |
| Ex rate |
Ex d IIB T4 Gb |
| Degree of protection |
IP54 |
| Rate voltage |
220V/380V AC |
| Size of blade(mm) |
300,400,500,600 |
315,400,500,600 |
500,600,750 |
| Power consumption(W) |
120,180,250,370 |
180,250,550,750,1500 |
370,550,750 |
| Air volume(m³/min) |
2200,2400,4900,9500 |
2273,4687,9133,18250 |
6000,9600,18000 |
Portable explosion proof axial flow exhaust ventilator blower fan
The post axial flow fan is placed directly on the indoor or ourdoor side and it can move everywhere..
It is suitable for such places as factories, workshops, warehouses and other similar places for air cooler.
Axial flow fan is currently the ideal choice for new applications such as chemical and light industry civil building senior hotels.
Installation for Axial Flow Fan and Blower:
-Wall Mount
-Pipe Type
-Position Type
-Fixed Type
FAQ:
1 .Q1: May I get free sample?
A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer place bulk orders for that item.
Q2: Can you supply OEM or ODM service?
A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!
Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q4:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products. Q6: What's the MOQ? A:MOQ is 1 set.
Applications:
1. Gas stations - During the refueling and unloading process, gasoline can easily evaporate, forming flammable vapors. These vapors, when mixed with air and exposed to sparks, can explode.
2. Chemical plant reaction rooms - During the production process, pipes and valves may leak flammable and explosive gases or solvent vapors such as benzene, alcohols, and ethers.
3. Coal mine tunnels - Coal seams continuously emit methane (gas), and mining operations generate large amounts of combustible coal dust, creating a typical explosive environment.
4. Flour mill grinding rooms - Grain processing generates airborne flour dust, which, when reaching a certain concentration, can cause a dust explosion when exposed to an ignition source.
5. Automotive paint spray booths - Paint mist and solvent vapors emitted by thinners (such as thinner) used during spraying are both flammable and explosive.
6. Gas boiler rooms/pressure regulating stations - Natural gas (primarily methane) pipelines and valves may leak, and accumulation can create an explosive atmosphere.
7. Alcohol/Liquor Bottling Plant - Alcohol (ethanol) is highly volatile. In a confined space, its vapor can form an explosive mixture when mixed with air.
8. Aluminum/Magnesium Alloy Grinding and Polishing Plant - Aluminum and magnesium powders generated during processing are flammable metal dusts that can explode violently when exposed to open flames or high temperatures in air.
9. Anaerobic Tanks in Sewage Treatment Plants - The sewage treatment process produces methane (primarily methane) as a byproduct, which can easily accumulate in tanks or pumping stations.
10. Solvent/Paint Warehouses - Flammable liquids (such as toluene) stored in centralized locations continuously evaporate, and vapor concentrations can easily reach explosion limits in the absence of adequate ventilation.
